S-55P : 55’’ FHD Studio Monitor with SFP module & Ember Protocol

The S-55P is Full HD Studio Wall monitor with high contrast ratio and wide viewing angle. It supports various video formats including 3G/HD-SDI, HDMI and DVI. The SFP interface can be supported for versatility. The S-series provides network control by Ember+ protocol and HDR function with HDR EOTFs of PQ, HLG and SLog3.
S-55P

S-55P S-55P S-55P

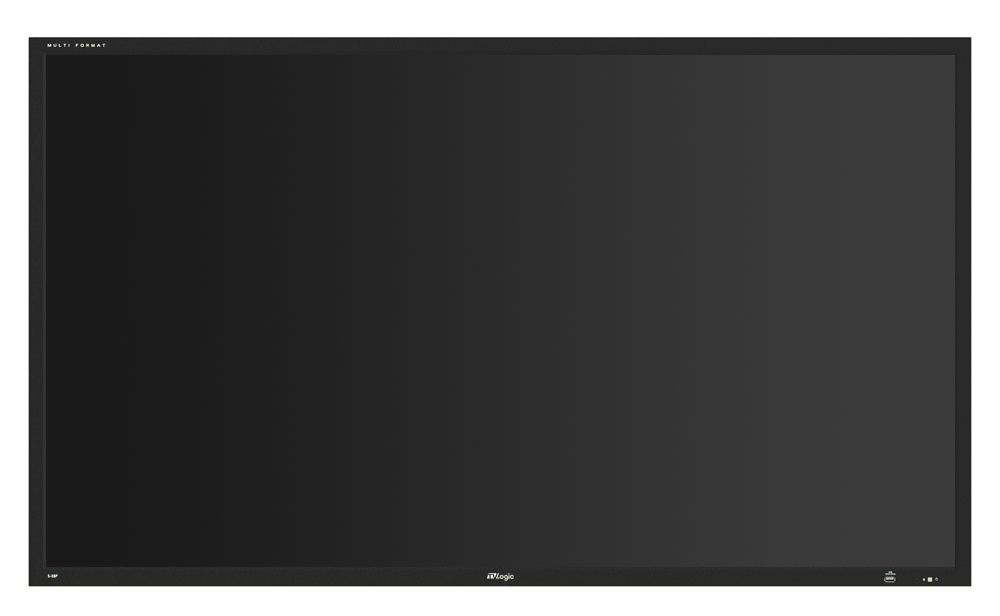

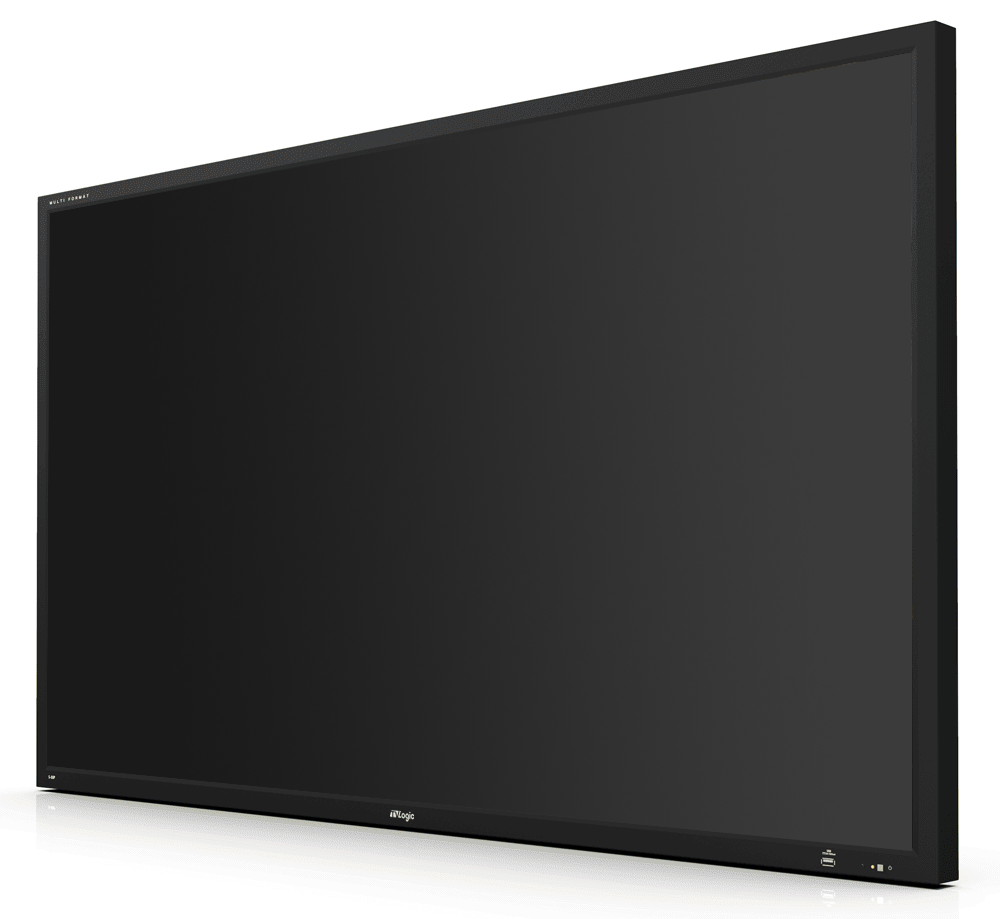

55’’ FHD Studio Wall Monitor with SFP module & Ember+ Protocol

The S-55P is Full HD Studio Wall monitor with high contrast ratio and wide viewing angle.
It supports various video formats including 3G/HD-SDI, HDMI and DVI. The SFP interface can be supported for versatility.
The S-series provides network control by Ember+ protocol and HDR function with HDR EOTFs of PQ, HLG and SLog3.




Main Body Dimensions
Main Body     1262 x 736 x 76.4 (mm) / 49.68 x 28.97 x 3 (inch)
With Stand    1262 x 784.5 x 245 (mm) / 49.68 x 30.88 x 9.65 (inch)
Weight             31.8kg / 70.1lbs




Product Highlights
• 55”  Full HD Resolution (1920×1080)
1.07 Billion Colors (10bit)
 HDR (PQ, HLG, SLog3)
 Ember+ Protocol (LAWO)
 TSL 3.1/5.0 Support
 Selectable Output via Internal Routing
 2 x SFP Input/Output
 PBP(Picture By Picture)
 Fast Mode
 Custom 3D LUT Import by USB Flash Drive
 Various Built-in Camera LUTs
 Closed Caption (CC-608/708, CC-KOR, OP47)
 Waveform
 Vectorscope (High Resolution)
 16ch Audio Level Meter
 Dual Markers (Main & Sub)
 Timecode Display
 Dynamic UMD
 User Aspect
 Luma(Y’) Zone Check



Optional Accessories

HDR Emulation

A true HDR monitor must employ a special display panel with high dynamic range and a wide color gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI color gamut.
HDR EmulationHDR Emulation
Other monitor utilizing displays with normal luminace range from 0.1nit up to 400nit or high luminance monitor with up to 2000nit with variable black level (0.1 ~ 1.5nit) is defined as 'HDR Emulation monitor' in TVLogic although they have HDR EOTF and related functions. Below is a simple example for your reference.

* True HDR Monitor : HDR Display (~1000nit, 1M CR, DCI gamut) + HDR EOTF & other related function
* HDR Emulation Monitor : Normal Display (~400nit, 1000:1, BT.709 gamut) + HDR EOTF & other related function

And in TVLogic monitors, HDR Emulation function includes the control parameters below;

* Standard Color Mode (HLG, PQ, PQ2)
* Video Range
* Display Luminance *
* HDR EOTF (PQ, HLG) or Camera Logs** (coming soon)
* PQ EETF (On / Off)
* HLG System Gamma (Fixed 1.2 / Auto)
* Color Gamut (BT.709, DCI-P3, BT.2020 and Native mode)
* White Point (D65, D93, DCI)
* Gamut Warning
* Shadow Mode *** (LUM-318G only)

1:1 Pixel Mapping Modes for SD/HD

Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
1:1 Pixel Mapping Modes for SD/HD1:1 Pixel Mapping Modes for SD/HD

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Audio Level Meter Display

Custom 3D LUT Import

Allows you to load your making 3D-LUT files at NLE software like Davinci Resolve by USB flash memory and displays your LUT on VFM-055A or F-7H. Once you synchronize LUTs in the monitor, you will easily change them on production.
Custom 3D LUT Import

PBP(Picture by Picture)

Support displaying multiple inputs on the screen at the same time.
PBP(Picture by Picture)PBP(Picture by Picture)PBP(Picture by Picture)

Time Code Display

Displays the Timecode information on the screen.
Time Code Display

User Aspect

Adjusts the Width /Height display ratio.
User AspectUser AspectUser Aspect
Display Spec

 Size  55"
 Resolution  1920 X 1080 (16:09)
 Pixel Pitch  0.530mm
 Color Depth  1.07B
 Viewing Angle  178°(H) / 178°(V)
 Luminance  450cd/m2
 Contrast Ratio  4,000:1
 Display Area  1,209(H) x 680(V) mm
Input
 2 X BNC  3G-SDI A/B Channel Input
 1 X HDMI  HDMI Input
 1 X DVI  DVI Input
Output
 2 X BNC  3G-SDI Output
Input Signal
 3G SDI  2.970Gbps
 HD SDI  1.485Gbps
 SD SDI  270Mbps
 HDMI  480i/480p/576i/576p/720p/1080i/1080p/640x480/ 720x400/800x600/1024x768/1600x1200
 DVI Analog  640x480/720x400/800x600/1024x768/1600x1200/1920x1080
 DVI DP  640x480/720x400/800x600/1024x768/1600x1200/1920x1080
 DVI DH  1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50)
SDI Input Signal Formats
 SMPTE 425M-A/B  1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
 SMPTE 372  Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50) Dual HD-SDI YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/ 24sF/23.98/23.98sF)
 SMPTE 296  720p (60/59.94/50)
 SMPTE 274  1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
 SMPTE 260  1035i (60/59.94)
 SMPTE 125  480i (59.94)
 ITU-R BT.656  576i (50)
 2K Format  2048 x 1080p (24/24sF/23.98/23.98sF)
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  -
FPGA Functions
 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Luma(Y') Zone Check,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector
Closed Caption
 CC-608 ANC,  CC-608 LINE 21,  CC-708,  CC-KOR
Calibration
 TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import
Other Functions
 REMOTE   GPI (RJ45)
 REMOTE   TVLogic’s specification
 USB   Firmware update by USB memory stick
 Ethernet   Ethernet Control support
Options
 Stand,  Carrying Case,
