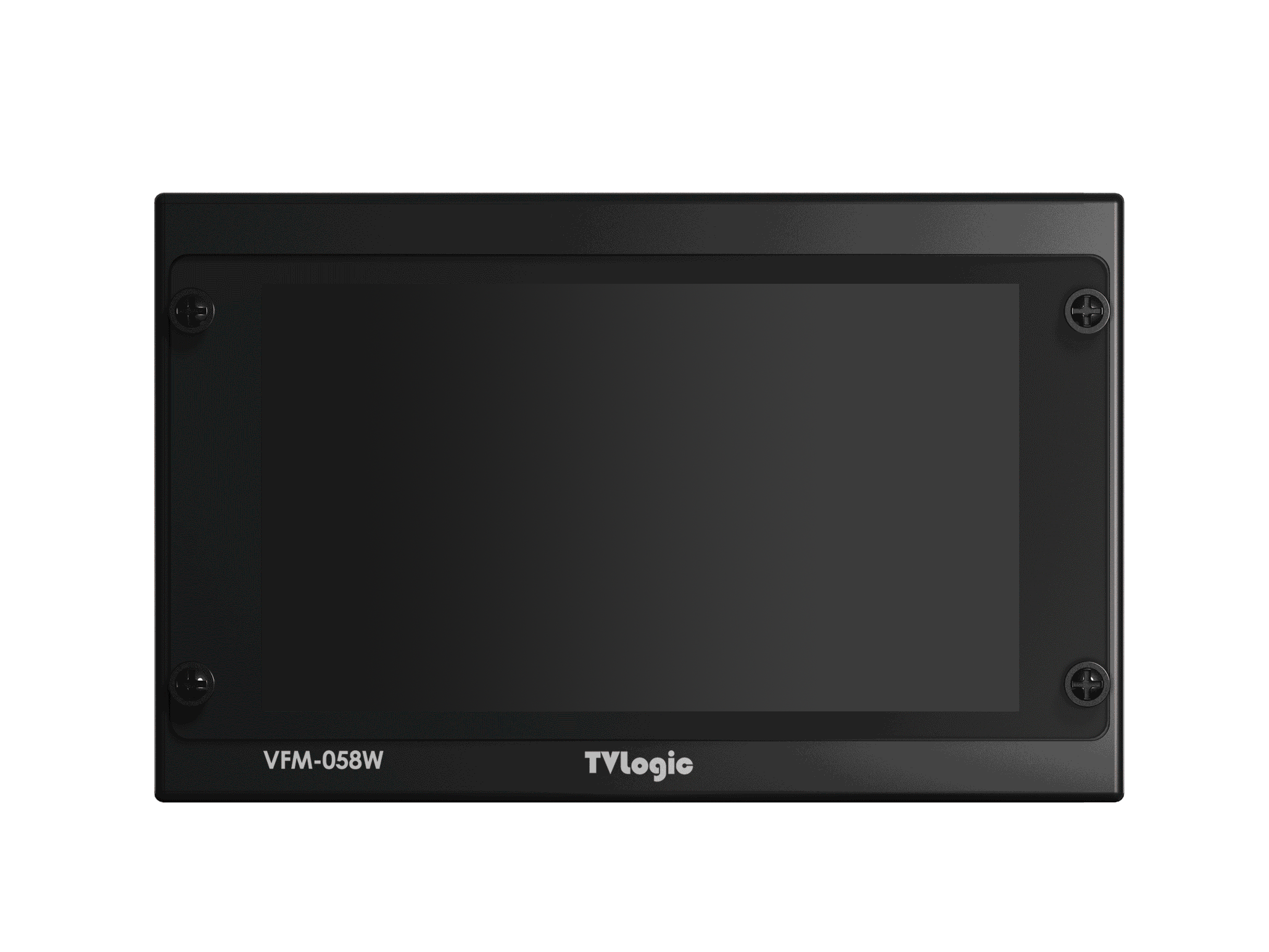

VFM-058W : 5.5” Full HD Viewfinder

The VFM-058W, the lightweight viewfinder monitor, offers an outstanding picture quality with 5.5” LCD, and Full HD resolution of 1920 x 1080. Innovative and ergonomic design of VFM-058W makes you comfortable in the shooting environment and its light solid magnesium case achieves the highest efficiency of ventilation. The VFM-058W supports multi-formats including 3G/HD/SD-SDI and HDMI that offers a wide application range from DSLR cameras to Pro camcorder for broadcasting and movie shooting. The VFM-058W has various features such as Max Brightness function, Temperature Adaptive Color, HDMI-to-SDI conversion output, 1:1 pixel mode, Luma(Y’) Zone Check function, DSLR Scale, Waveform, Camera Lut., Arri Camera Metadata, Vectorscope, Range Error, Focus Assist, Markers, Audio Level Meter with speaker and time code display.

VFM-058W

Choice:


Audio Level Meter Display

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Closed caption

Closed caption

Closed caption.

Blue Only / Mono

blue only

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Focus Assist

Focus AssistFocus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

H/V Delay

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

H/V Flip

H/V FlipH/V FlipH/V Flip

Allows the displayed image to be flipped horizontally or vertically. This feature provides flexible mounting options for camera operators.

Key Lock

Locks the knob or key control.

Luma(Y') Zone Check

Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.

Marker

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Max Brightness On/Off

Max Brightness On/OffMax Brightness On/Off

Displays the brightness increases from the normal up to max brightness to obtain a sharp and bright image when shooting outdoors.

Range Error

Range ErrorRange Error

Anahlyzes the input signal’s Luma(Y’) and chroma information(C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink. This function is to help the user to easily find out any unwanted levels of signals and for a better exposure setting.

Time Code Display

Time Code Display

Displays the Timecode information on the screen.

User Aspect

User AspectUser AspectUser Aspect

Adjusts the Width /Height display ratio.

Various Scan Modes

Various Scan ModesVarious Scan ModesVarious Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Waveform/Vector Scope

Waveform/VectorWaveform/Vector

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

Zoom

ZoomZoom

Magnifies the input signal from 0% to 90%.

Camera LUT

Camera Lut.Camera Lut.

Applies the LUTs to the outbound Log signal. A LUT for every major camera manufacturer has been included(LOG-C, C-LOG, S-LOG 1,2,3 and RED Gamma 3,4).

ARRI Alex Metadata over SDI

ARRI Alex Metadata over SDIARRI Alex Metadata over SDI

Takes the Metadata from the ARRI ALEXA is transported through the SDI outputs of the camera, and displays it on the monitor.

3G-SDI Level A/B

Supports 3G-SDI Level A/B input.

Display Spec.

 Size  5.5"
 Resolution  1920 X 1080 (16 : 9)
 Pixel Pitch  0.063mm
 Color Depth  16.7M
 Viewing Angle  160°(H) / 160°(V)
 Luminance  450cd/m2
 Contrast Ratio  1000:1
 Display Area  121(H) × 68(V) mm
Input
 1 X BNC  3G-SDI A Channel Input
 1 X HDMI  HDMI Input
Output
 1 X BNC  3G-SDI Output
 1 X HDMI  HDMI Output
Audio
 Audio In  Embedded Audio/Analog Stereo (Phone Jack)
 Audio Out  Analog Stereo (Phone Jack), Internal Speaker(Mono)
FPGA Functions
,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  H/V Flip,  Key Lock,  Luma(Y') Zone Check,  Marker,  Max Brightness On/Off,  Mono,  Range Error,  Temperature Adaptive Color,  Time Code Display,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom,  Camera Lut.,  Arri Camera Metadata
Closed Caption
Calibration
Other Functions
 USB   Firmware update by USB memory stick
 Ethernet
Options
 Battery Bracket,  Camera Mount, Ball Head,  Carrying Case,  D-Tap Cable,  External Acrylic Filter,  Sun Hood,  V-Mount

VFM-058W : 5.5” Full HD Viewfinder

Main body Dimensions
- Main Body : 156 x 98 x 33.4 (mm) / 6.14 x 3.85 x 1.31 (inch)
- Weight : 0.34kg / 0.74lbs
- Weight
(heatsink) : 0.12kg / 0.26lbs



  Product Brochure (1 Page)   Download
  Manual   Download
  Leaflet    -
  Total Brochure   Download

[Release Notes]
Date : 16.11.23
VFM-058W [MCU Firmware Update : V0016 --> V0017]
1. Debugged LDS info & Camera index letter error which can not be activated V0016 firmware version.

Date : 16.11.17
VFM-058W [MCU Firmware Update : V0015 --> V0016]
1. Fixed the SDI to HDMI, HDMI to SDI Error
2. Fixed the NTSC, PAL signal error (HDMI input)

Date : 16.10.31
VFM-058W [MCU Firmware Update : V0015 --> V0016]
1. Fixed a typing error (LUT Loading)
2. Fixed a bug (No video loop on HDMI when signal is lost)
3. Changed Factory's Unstable OSD to Stable OSD
4. Minimize the unstable count of HDMI & SDI

Date : 16.04.14
VFM-058W [MCU Firmware Update : V0013 --> V0014]
1. Revised Sony S-Log1/2/3 Lut data

Date : 16.02.03
VFM-058W [MCU Firmware Update : V0012 --> V0013]
1. Added [OutputMode Select] feature.
2. Added [Focus Assist White] feature.
3. Added [Unstable Count] on factory menu

Date : 15.10.27
VFM-058W [FPGA Firmware Update : V0004 --> V0005 / MCU Firmware Update : V0009 --> V0010]
1. Debugged screen noise when turn the monitor on and off.
2. Added ARRI Camera MetaData Display (S/W)

Date : 15.09.04
VFM-058W [FPGA Firmware Update : V0004 --> V0003]
1. A bug(vertical stripes on screen) found in V0004.
2. Use V0003 instead of V0004.
3. The new V0004 will be released as soon as debugging is done.

Date : 15.08.13
VFM-058W [MCU Firmware Update : V0010 --> V0011]
1. Debugged wrongly operating Backlight during calibration.
2. Added function of ARRI Camera MetaData Display.
=> Support ClipName and REC Flag
=> Support Sensor FPS & Project FPS 120 fps

Date : 15.08.03
VFM-058W [FPGA Firmware Update : V0004 / MCU Firmware Update : V0009 --> V0010]
1. Added ARRI Camera MetaData Display feature
2. Added Camera LUT conversion feature
3. Changed the logo, [LUT Loading..] => [Loading..], when booting.

Date : 15.01.19
VFM-058W [MCU Firmware Update : V0008 --> V0009]
1. Changed value of Gamma LUT Default : 2.2 --> 2.4.

Date : 14.12.18
VFM-058W [MCU Firmware Update : V0007 --> V0008]
1. Added an inactivate low battery feartue.

Date : 14.12.01
VFM-058W [MCU Firmware Update : V0006 --> V0007]
1. Debugged not to work Mute when Audio Volume 0.
2. Added feature to select Gamma LUT 2.2 / 2.4

Date : 14.08.07
VFM-058W [MCU Firmware Update : V0004 --> V0006]
1. Debugged related audio.

Date : 14.03.06
VFM-058W [MCU Firmware Update : V0003 --> V0004]
1. Debugged Marker error on Scan Mode [Pixel to Pixel].
2. Debugged not working GPI Tally.
3. Improved Booting speed.
4. Deleted "LUT Load.." message

Date : 14.01.14
VFM-058W [MCU Firmware Update : V0002 --> V0003] [FPGA Firmware Update : V0002 --> V0003]
1. Debugged Vector in HDMI to HDMI: 480p,576p.
2. Debugged output in HDMI to SDI: 480i,576i.
3. Debugged screen noise when changing signal format in SDI to HDMI.
4. Debugged Color Conversion when chaning 3G SDI(SDI to HDMI) into SD.
5. Debugged audio error when feeding SD signal as in HDMI to SDI

Date : 14.01.02
VFM-058W [MCU Firmware Update : V0001 --> V0002] [FPGA Firmware Update : V0001 --> V0002]
1. Debugged Zoom Off in 1080/50/60p.
2. Debugged green screen at No Video
3. HDMI Pixel Clock Inverting.(Noise)
4. Debugged NO VIDEO problem after turnig on.
5. Debugged noise on HDMI input.
