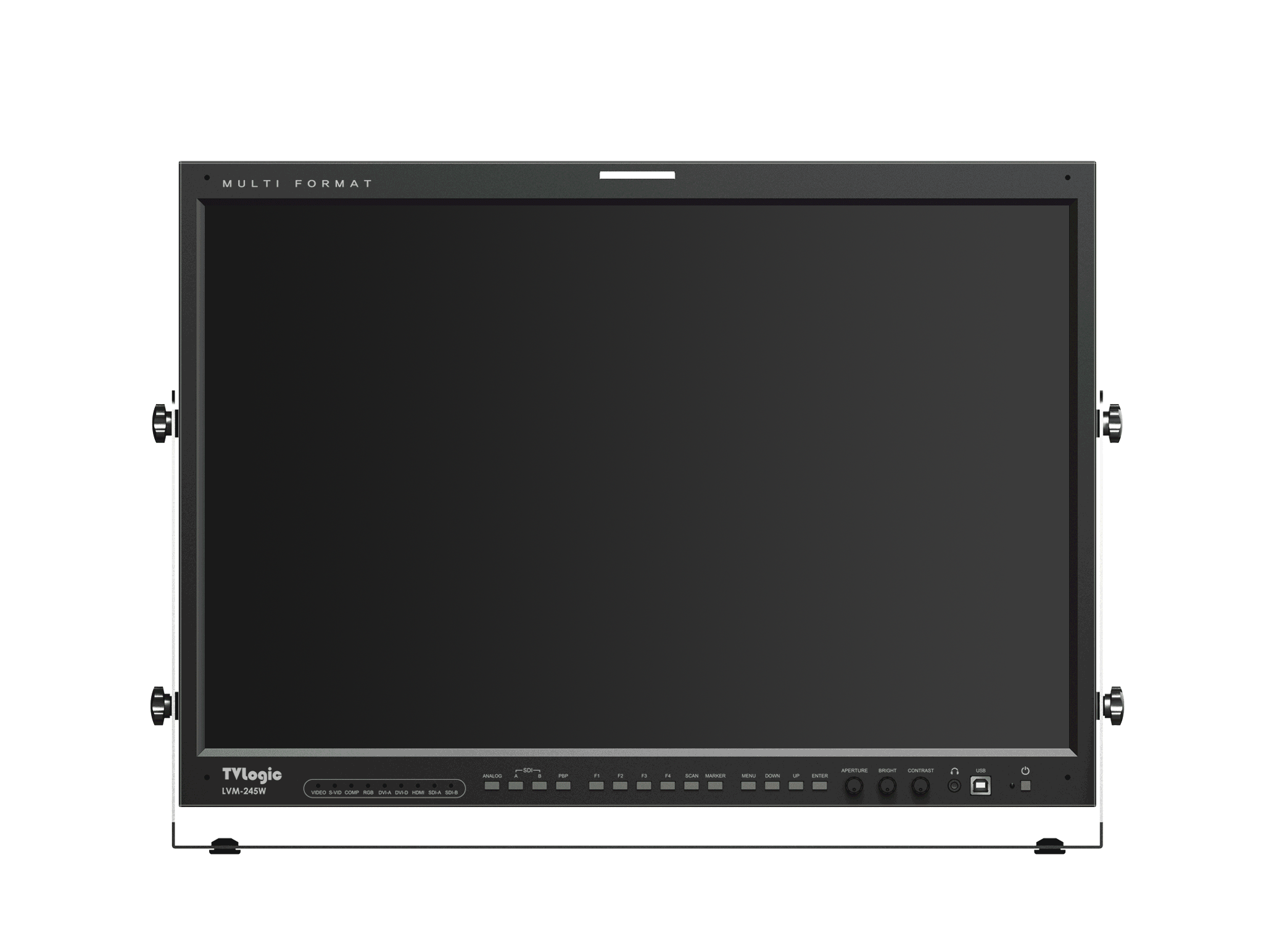

Product Highlights
• 24” 1920x1200 Native HD Resolution
• Matte Finish Panel
• High-Purity Precision RGB Matrix LED Backlight Array
• 1:1 Pixel Mapping Modes for SD/HD
• Supports TVLogic Color Calibration Utility for proper
color alignment
• Supports Multi-point Calibration for RGB and White
uniformity correction
• Firmware update by using Ethernet or USB
• GPI (RJ45)
• Timecode Display (VITC/LTC)
• Waveform/Vectorscope (Y/Cb/Cr, RGB Wide type,
Line Waveform and Range Error) • H/V Delay
• Marker / User Aspect • Key lock
• Blue Only/Mono • X3 Zoom(PBP)
• UMD (ANC, Manual, Dynamic & User)
• Closed Caption: CEA- 608/708 (SDI), Line 21, ANC,
OP-42, OP-47
• Monitor control by using RS422
Display Spec
| Size |
24.1" |
| Resolution |
1920 X 1200 (16 : 10) |
| Pixel Pitch |
0.270mm |
| Color Depth |
1.07B |
| Viewing Angle |
178°(H) / 178°(V) |
| Luminance |
250cd/m2 |
| Contrast Ratio |
1000:1 |
| Display Area |
518(H) x 324(V) mm |
Input
| 1 X BNC |
Analog Input (Composite) |
| 3 X BNC |
Analog Input (Component) |
| 2 X BNC |
3G-SDI A/B Channel Input |
| 1 X HDMI |
HDMI Input |
| 1 X DVI |
DVI Input |
Output
| 1 X BNC |
Analog Output (Composite) |
| 3 X BNC |
Analog Output (Component) |
| 2 X BNC |
3G-SDI A/B Channel Output |
Input Signal
| Analog |
CVBS / S-Video / Component Video / RGB(D-TV) |
| 3G SDI |
2.970Gbps |
| HD SDI |
1.485Gbps |
| SD SDI |
270Mbps |
| HDMI |
480i/480p/576i/576p/720p/1080i/1080p/640x480/
720x400/800x600/1024x768/1280x1024/
1600x1200/1920x1200 |
| DVI Analog |
640x480/720x400/800x600/1024x768/1280x1024/
1600x1200/1920x1200 |
| DVI DP |
640x480/720x400/800x600/1024x768/1280x1024/
1366x768/1600x1200/1920x1200 |
| DVI DH |
1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/
480i(60)/480p(60)/576i(50)/576p(50) |
SDI Input Signal Formats
| SMPTE 425M-A/B |
1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/
29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50) |
| SMPTE 372 |
Dual HD-SDI
YCbCr(4:2:2)
1080p (60/59.94/50)
Dual HD-SDI
YCbCr/RGB(4:4:4)
1080i (60/59.94/50)
1080p (30/29.97/25/24/
24sF/23.98/23.98sF) |
| SMPTE 296 |
720p (60/59.94/50) |
| SMPTE 274 |
1080i (60 / 59.94 / 50)
1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE 260 |
1035i (60/59.94) |
| SMPTE 125 |
480i (59.94) |
| ITU-R BT.656 |
576i (50) |
| 2K Format |
2048 x 1080p (24/24sF/23.98/23.98sF) |
Audio
| Audio In |
Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out |
Analog Stereo (Phone Jack), Internal Speaker(Stereo) |
FPGA Functions
|
1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, X3 Zoom(PBP), Zoom
|
Closed Caption
|
CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR, OP42, OP47
|
Calibration
|
TVLogic Color Calibration Utility
|
Other Functions
| REMOTE |
GPI (RJ45) |
| REMOTE |
TVLogic’s specification |
| USB |
Firmware update by USB cable |
| Ethernet |
Ethernet Control support |
Options
|
Carrying Case, ND Acrylic Filter, Rack Mount Kit(Single),
|
Dimensions
- Main Body : 552.5 x 389 x 95 (mm) / 21.75 x 15.31 x 3.74 (inch)
- With stand : 586.1 x 416.8 x 150 (mm) / 23 x 16.4 x 5.9 (inch)
- Weight : 10.5kg / 23.1lbs
