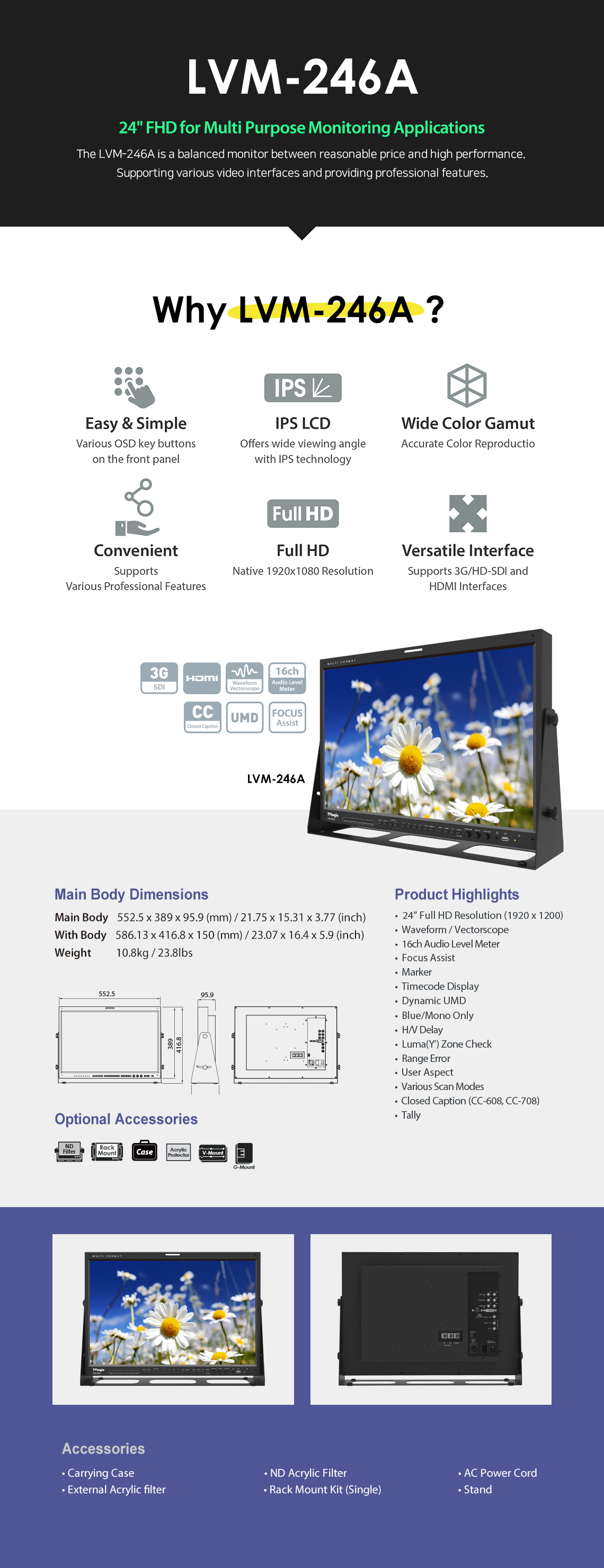

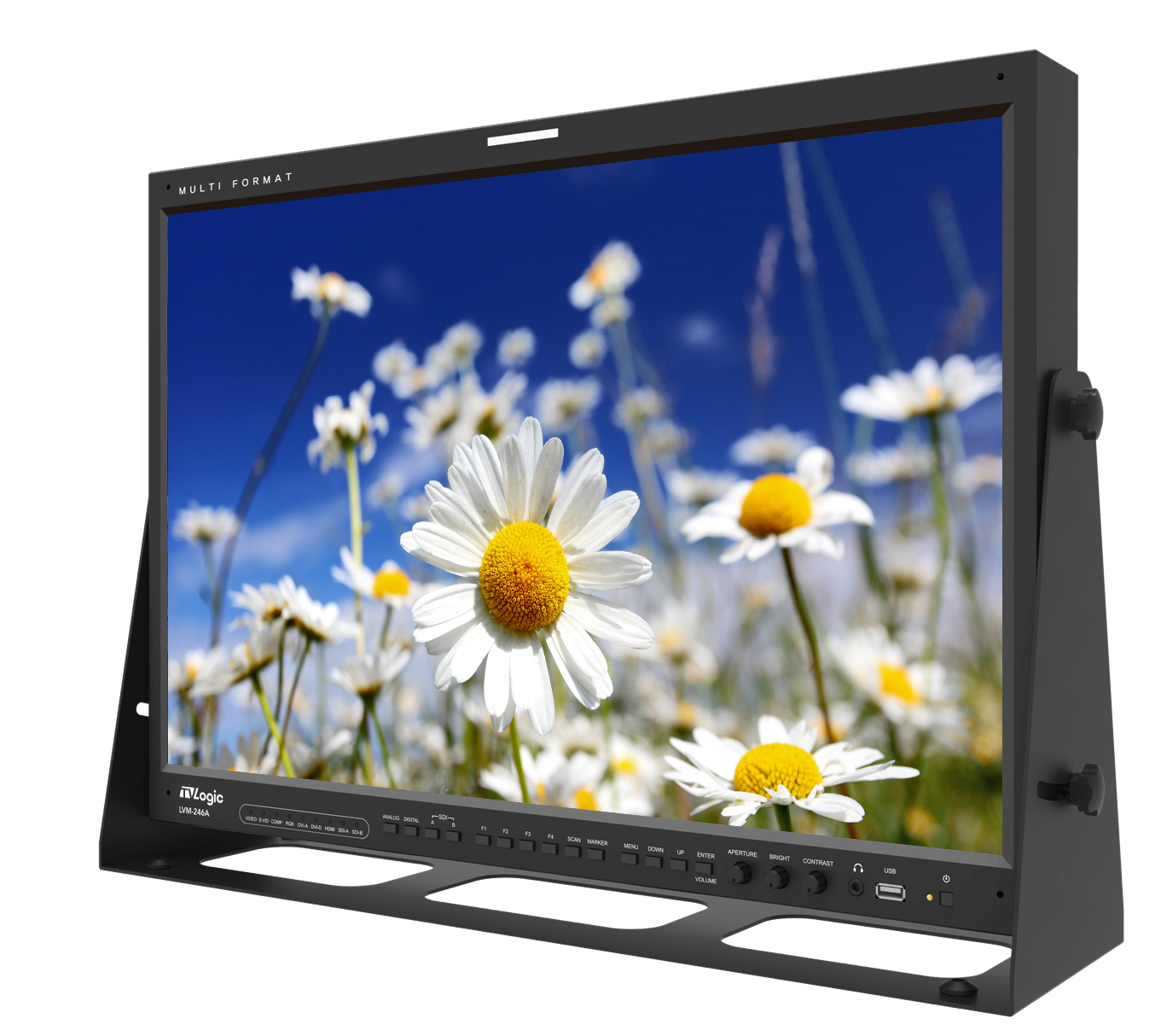

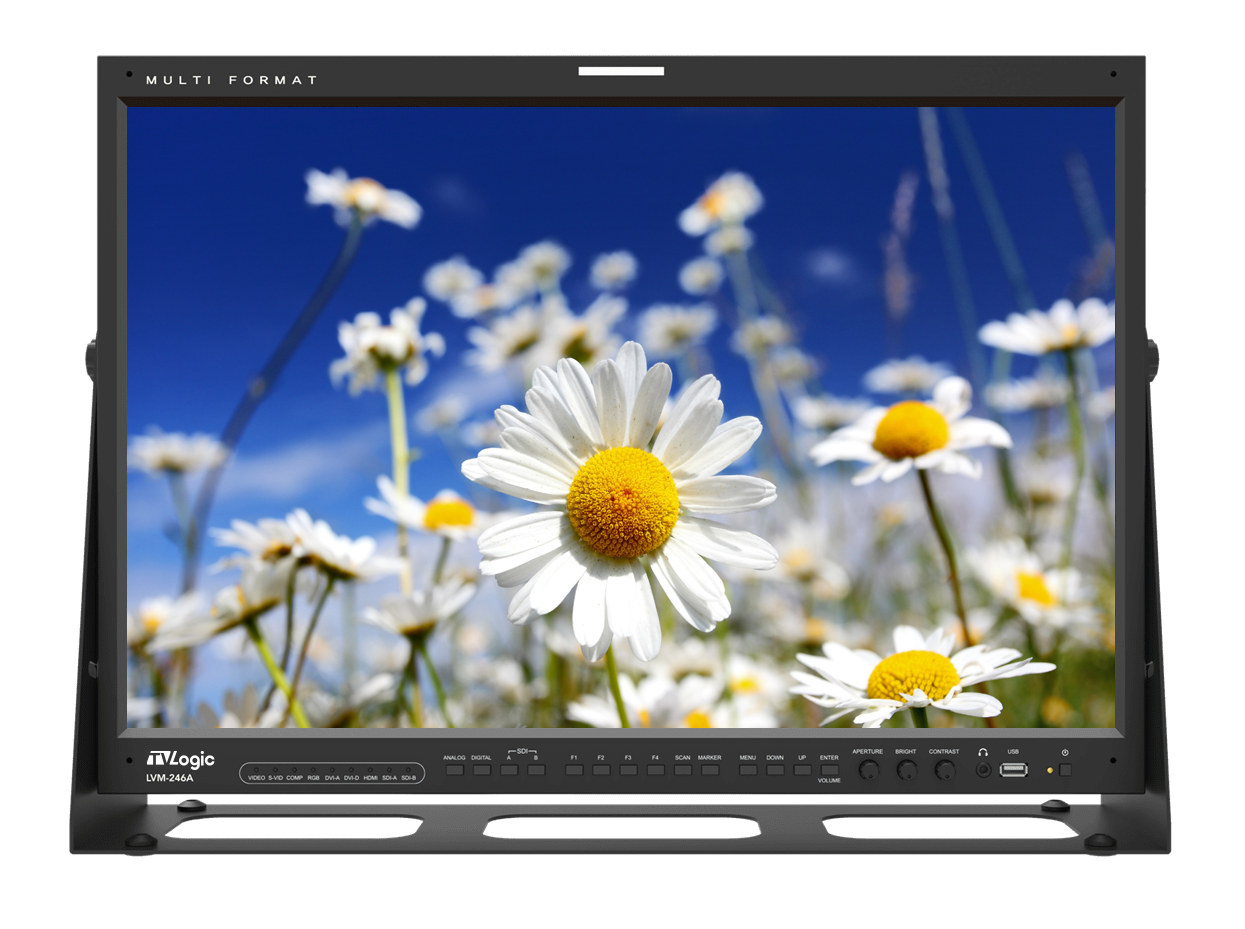

LVM-246A : 24" Full HD Professional LCD Monitor
24" FHD for Multi Purpose Monitoring Applications
The LVM-246A is a balanced monitor between reasonable price and high performance.
Supporting various video interfaces and providing professional features.
24" Full HD Professional LCD Monitor
The LVM-246A is a balanced monitor between reasonable price and high performance.
Supporting various video interfaces and providing professional features.
Main Body Dimensions
Main Body 552.5 x 389 x 79.4 (mm) / 21.75 x 15.31 x 3.12 (inch)
With Body 586.1 x 416.8 x 150 (mm) / 23.07 x 16.4 x 5.9 (inch)
Weight 10.06kg / 22.17lbs
Product Highlights
• 24” Full HD Resolution (1920 x 1200)
• Waveform / Vectorscope
• 16ch Audio Level Meter
• Focus Assist
• Marker
• Timecode Display
• Dynamic UMD
• Blue/Mono Only
• H/V Delay
• Luma(Y’) Zone Check
• Range Error
• User Aspect
• Various Scan Modes
• Closed Caption (CC-608, CC-708)
• Tally
Optional Accessories
3G-SDI Level A/B
Supports 3G-SDI Level A/B input.
Closed caption
Closed caption.
Focus Assist
Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.
UMD
Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.
Waveform/Vector Scope
Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
