LUM-095G : 9” 4K/UHD Multi-Purpose Monitor

The new LUM-095G monitor supports 3G/6G/12G-SDI input - 2×3G-SDI & 2×12G-SDI. With a native 1920 x 1080 LCD with SD/HD/UHD/4K input support, this monitor can be the most versatile monitoring and field production applications.
LUM-095G

LUM-095G LUM-095G LUM-095G

9” 4K/UHD Multi-Purpose Monitor

The new LUM-095G monitor supports 3G/6G/12G-SDI input - 2×3G-SDI & 2×12G-SDI.
With a native 1920 x 1080 LCD with SD/HD/UHD/4K input support, this monitor can be the most versatile monitoring and field production applications.





Main Body Dimensions
Main Body    223 x 175 x 60 (mm) / 8.78 x 6.89 x 2.36 (inch)
With Body    260 x 194.2 x 90 (mm) / 10.24 x 7.65 x 3.54 (inch)
Weight           2.14Kg / 4.71lbs




Product Highlights
• 9" FHD Panel + 4K Interface
 12G-SDI Single Link 4K/UHD
 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
 HDR (PQ, HLG, S-Log3)
 Custom 3D LUT Import by USB Flash Drive
 Various Built-in Camera LUTs
 Waveform / Vectorscope
 16ch Audio Level Meter
 Focus Assist
 Marker
 Timecode Display
 Dynamic UMD
 Blue/Mono Only
 Various Aspect
 Luma(Y’) Zone Check
 Closed Caption (CC-608, CC-708)
 H Flip & V Flip (Auto & Manual)


Optional Accessories

LUM-550M3 Features

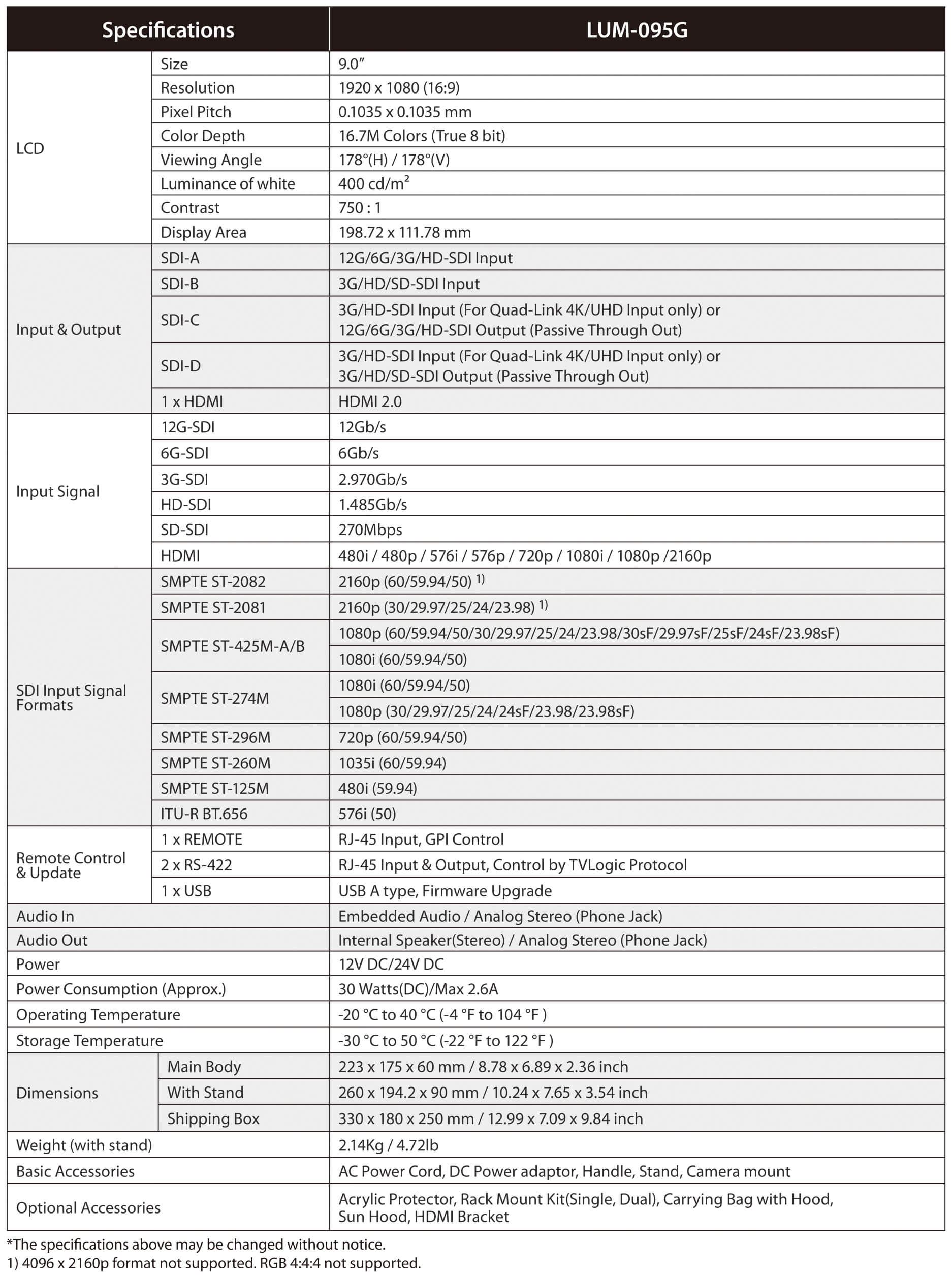

LUM-095G Specification
