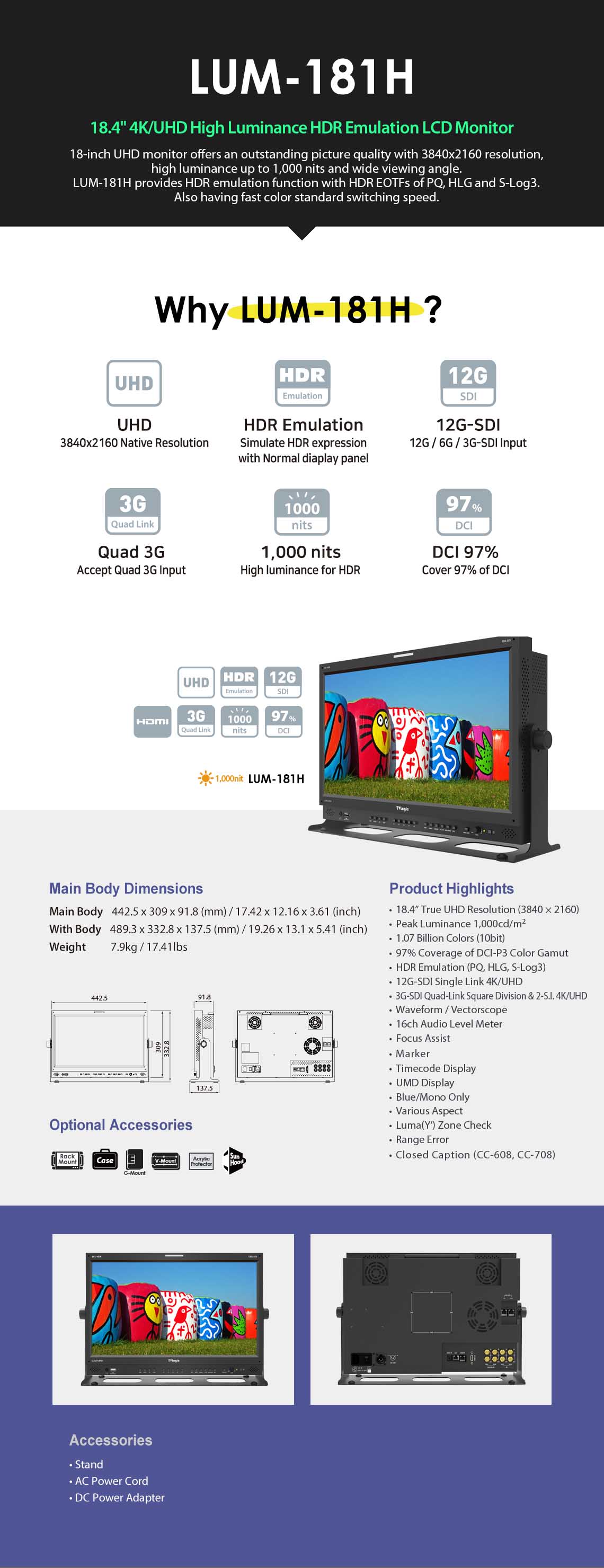

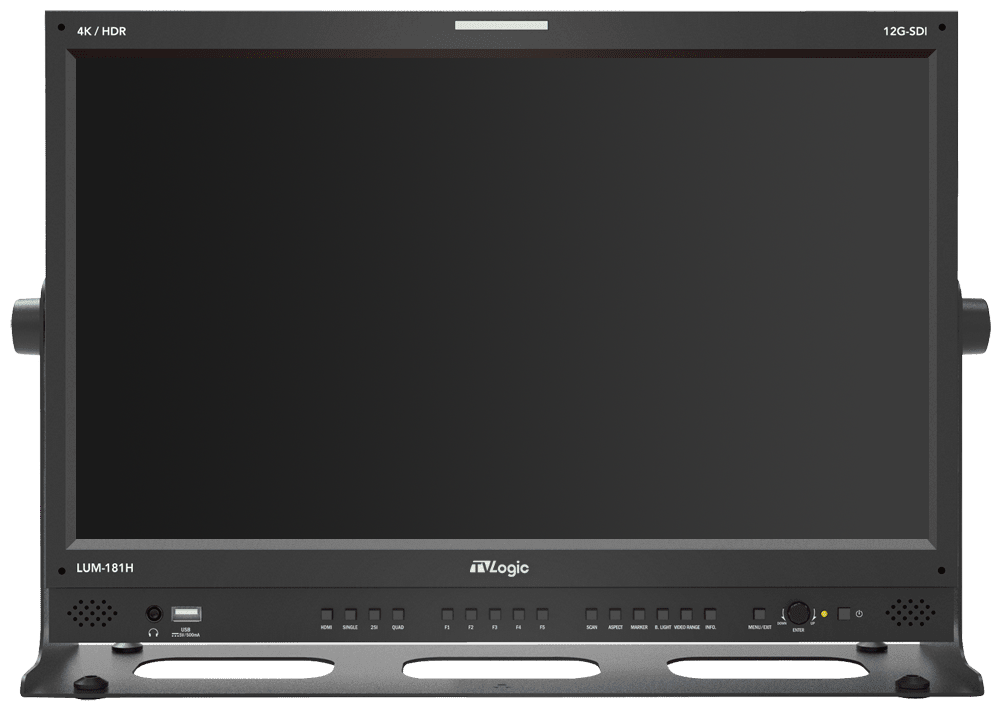

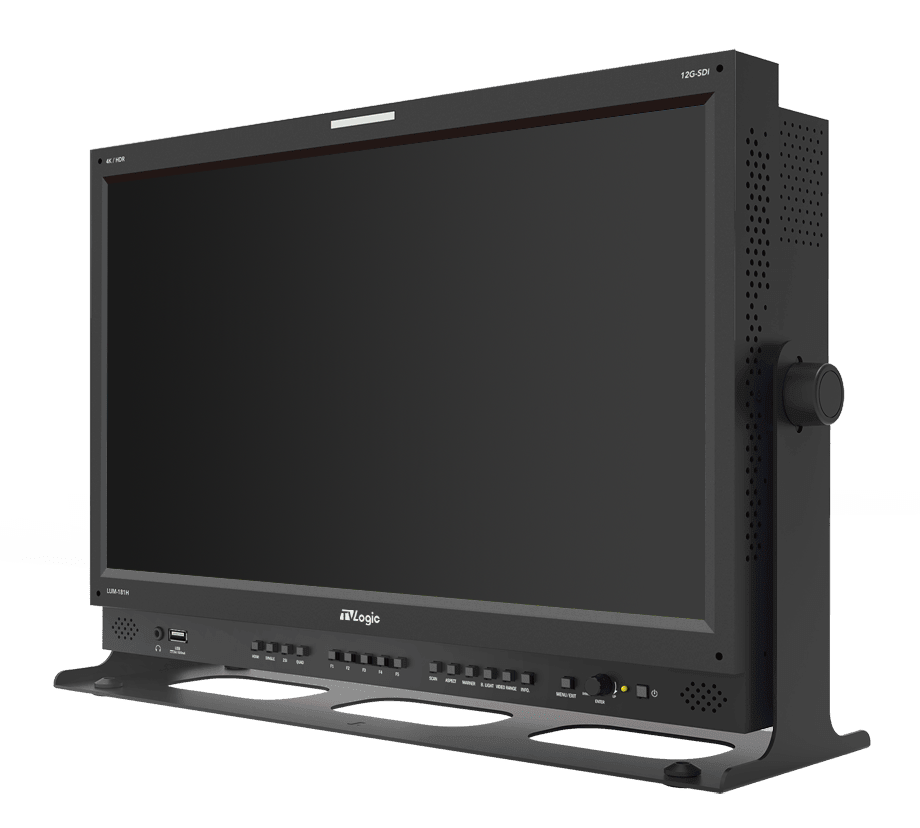

LUM-181H : 18.4’’ 4K/UHD High Luminance HDR LCD Monitor

18-inch UHD monitor offers an outstanding picture quality with 3840x2160 resolution, high luminance up to 1,000 nits and wide viewing angle. LUM-181H provides HDR function with HDR EOTFs of PQ, HLG and S-Log3. Also having fast color standard switching speed.
LUM-181H

LUM-181H LUM-181H LUM-181H


18.4" 4K/UHD High Luminance HDR LCD Monitor

18-inch UHD monitor offers an outstanding picture quality with 3840x2160 resolution, high luminance up to 1,000 nits and wide viewing angle. LUM-181H provides HDR function with HDR EOTFs of PQ, HLG and S-Log3. Also having fast color standard switching speed.




Main Body Dimensions
Main Body    442.5 x 309 x 91.8 (mm) / 17.42 x 12.16 x 3.61 (inch)
With Body    489.3 x 332.8 x 137.5 (mm) / 19.26 x 13.1 x 5.41 (inch)
Weight           7.9kg / 17.41lbs




Product Highlights
• 18.4” True UHD Resolution (3840 × 2160)
Peak Luminance 1,000nits
 1.07 Billion Colors (10bit)
 97% Coverage of DCI-P3 Color Gamut
• HDR (PQ, HLG)
• 12G-SDI Single Link 4K/UHD
• 3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
• Waveform / Vectorscope
• 16ch Audio Level Meter
• Focus Assist
• Marker
• Timecode Display
• UMD Display
• Blue/Mono OnlyMonitor
• Various Aspect
• Luma(Y’) Zone Check
• Range Error
• Closed Caption (CC-608, CC-708)
• H/V Delay
• Tally

Optional Accessories

LUM-181H Features

LUM-181H Specification
