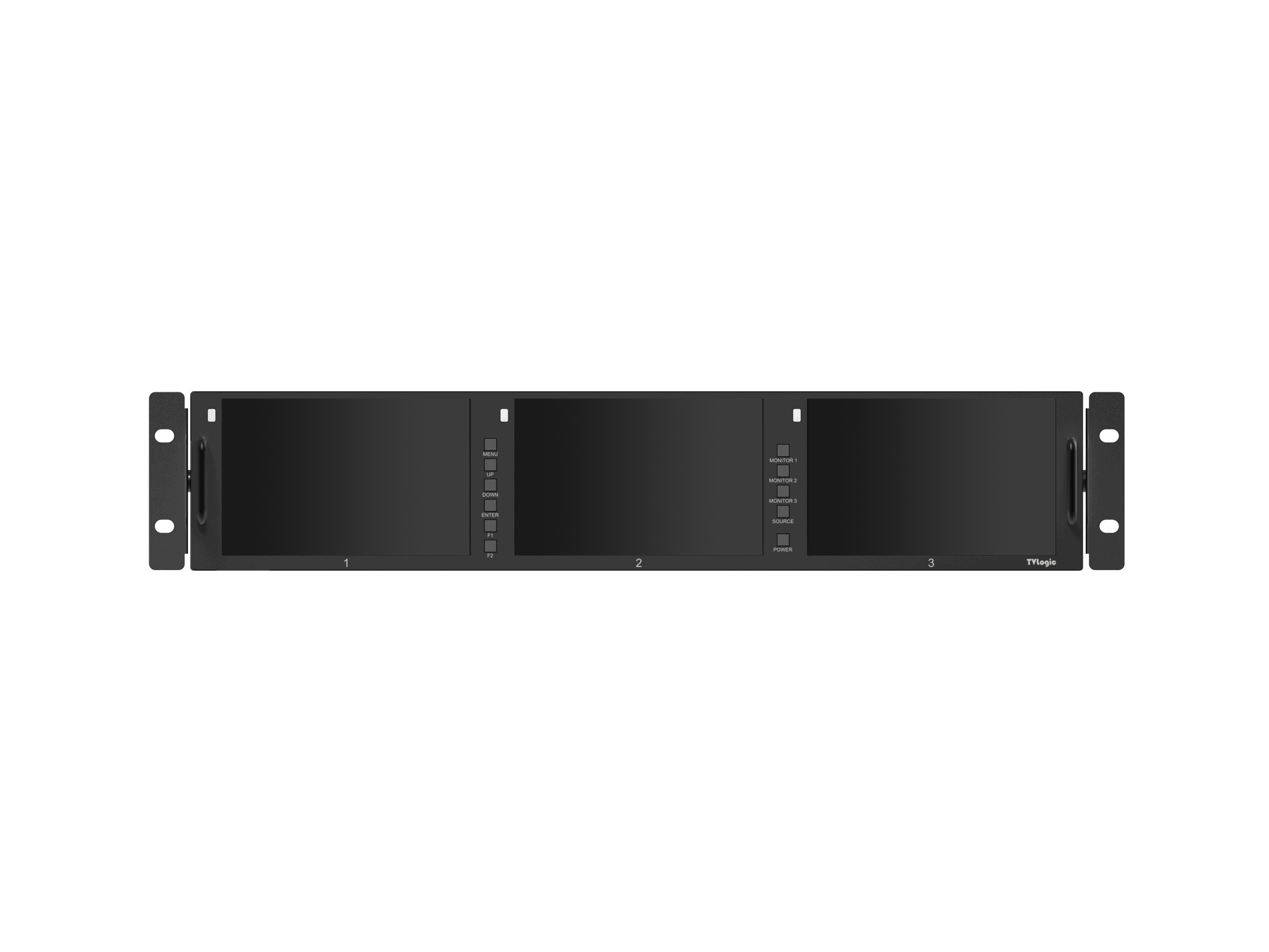

Display Spec

Size	5.6"
Resolution	1280 X 800 (16 : 10)
Pixel Pitch	0.094mm
Color Depth	16.7M
Viewing Angle	170°(H) / 170°(V)
Luminance	300cd/m2
Contrast Ratio	500:1
Display Area	121(H) × 76(V) mm

Input

1 X BNC	Analog Input (Composite)
2 X BNC	3G-SDI A/B Channel Input
1 X HDMI	HDMI Input

Output

1 X BNC

3G-SDI Output

Input Signal

Analog	CVBS
3G SDI	2.970Gbps
HD SDI	1.485Gbps
SD SDI	270Mbps
HDMI	1080p(24/25/30/50/60) / 1080i(50/60) / 720p(50/60) / 480i(60) / 480p(60) / 576i(50) / 576p(50) & VESA / IBM Modes

SDI Input Signal Formats

SMPTE 425M-A/B	1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF /29.97sF/25sF/24sF/23.98sF)
SMPTE 296	720p (60/59.94/50)
SMPTE 274	1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE 260	1035i (60/59.94)
SMPTE 125	480i (59.94)
ITU-R BT.656	576i (50)
2K Format	2048 x 1080p (24/24sF/23.98/23.98sF)

Audio

Audio In	Embedded Audio/Analog Stereo (Phone Jack)
Audio Out	Analog stereo (Phone Jack) / Internal Speaker (Mixed Mono)

FPGA Functions

1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Luma(Y') Zone Check,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  Zoom

Closed Caption

CC-608 ANC,  CC-608 LINE 21,  CC-708

Calibration Other Functions

USB	Firmware update by USB memory stick
Ethernet	Ethernet Control support

Options Dimensions

Basic Accessory

[Release Notes]
Date : 17.04.12
RKM-356A [MCU Firmware Update : V003 --> V004]
1. added 4K payload for 2SI
2. corrected mistyping (loding -> loading)

Date : 16.07.29
RKM-356A [USB Firmware Update : V004 --> V006]
1. Modified the fan operating temperature. (55\xa1\xc9-> 35\xa1\xc9)

Date : 16.04.22
RKM-356A [MCU Firmware Update : V0002 --> V0003]
1. Debugged the problem as in Romote control.
2. Debugged the problem of not operating Power off/on after tally on.
